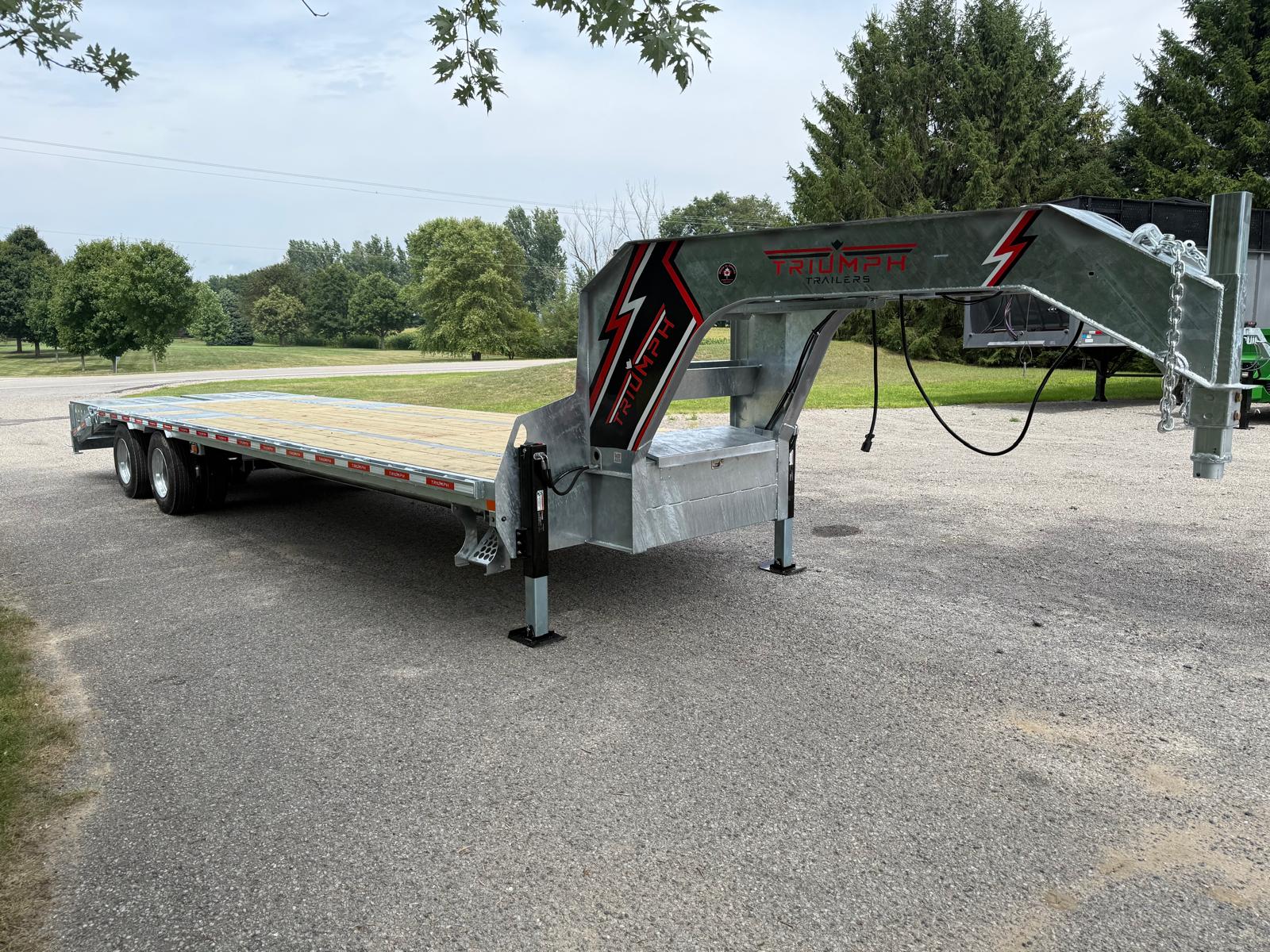

2027 Triumph Trailers Extreme Duty Gooseneck Deck Over
CONTACT FOR PRICING
*The price you see is the price you pay plus HST and licensing – NO HIDDEN FEES. We make every effort to ensure accuracy, but occasional errors may occur. Pricing, specifications, and availability can change without notice. We reserve the right to correct any inaccuracies. For the most up-to-date details, please visit our website, email sales@inthehunttrailers.com or give us a call at 519-785-2495.

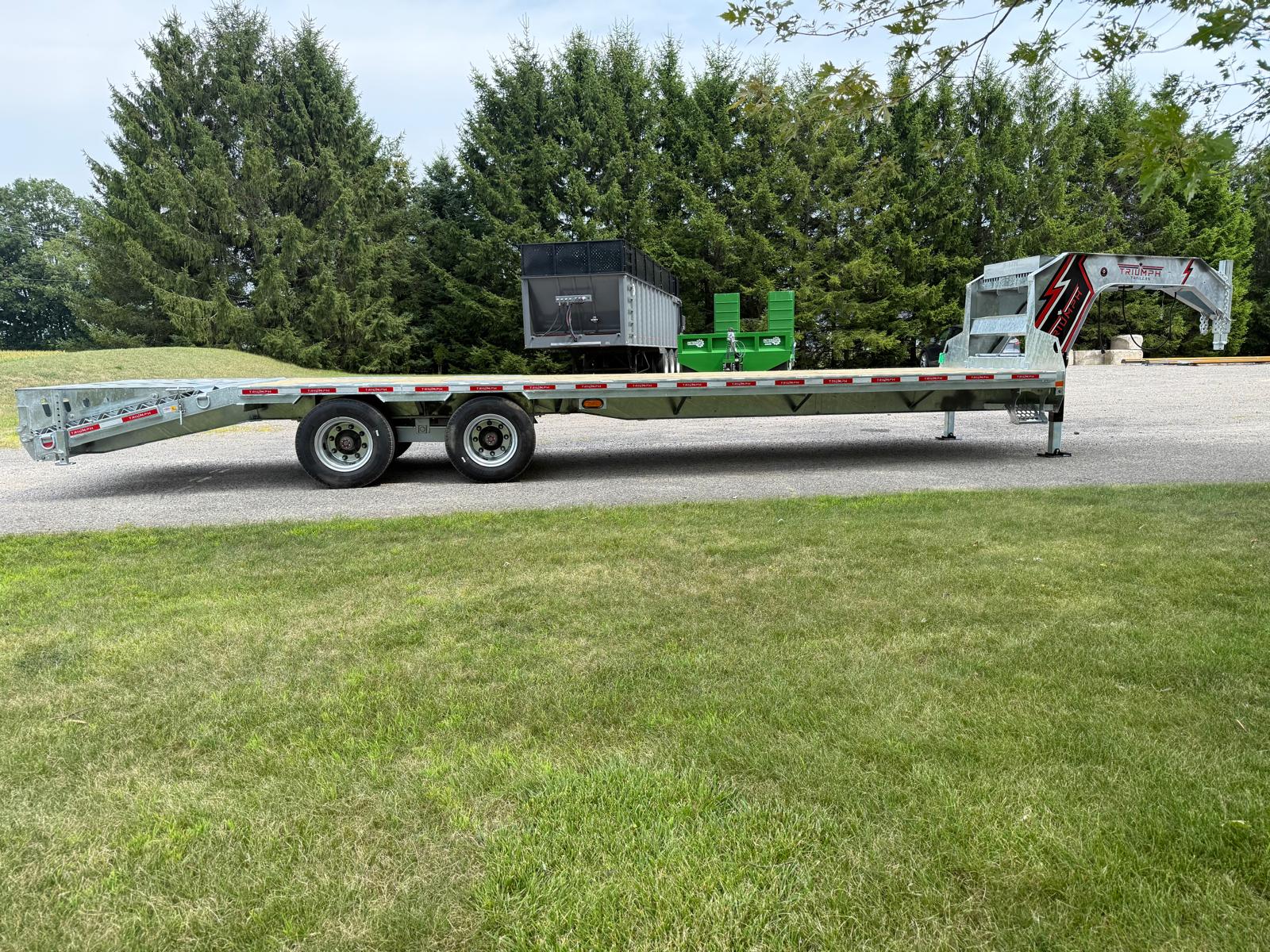

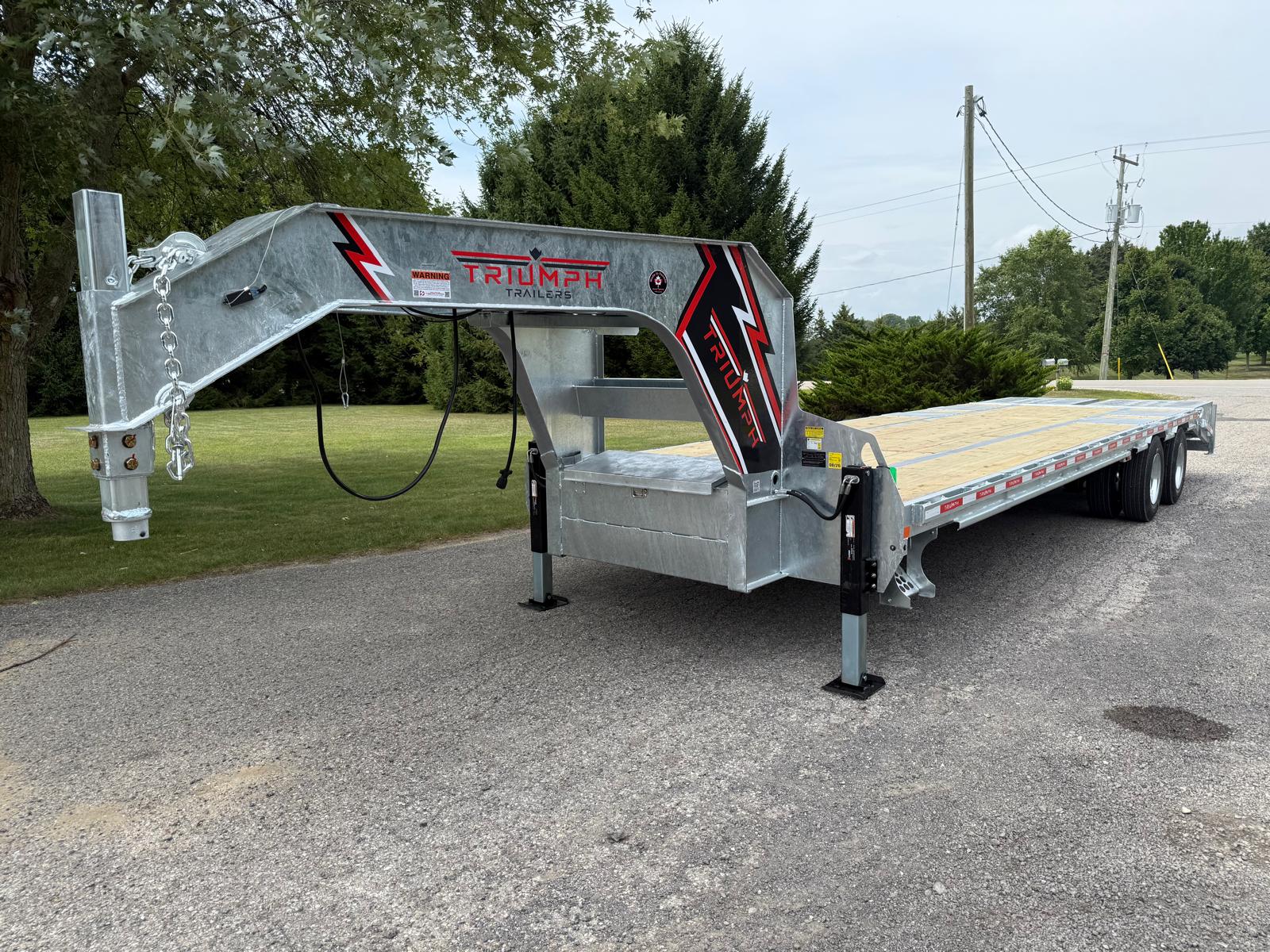

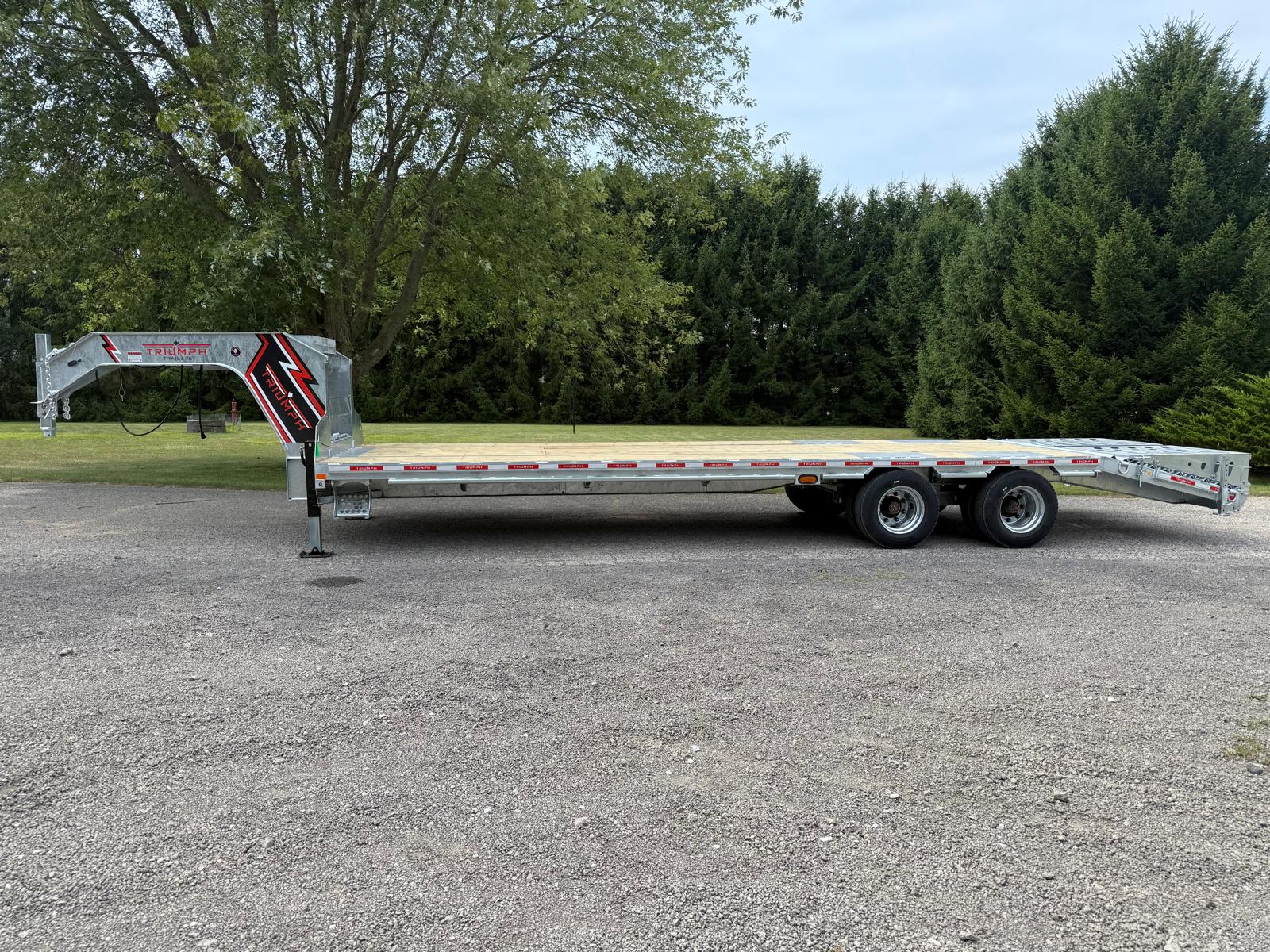

The 2027 Triumph Trailers Extreme Duty Gooseneck Deck Over is available to order now at In The Hunt Trailers. These Canadian made gooseneck equipment haulers are purpose built right here in Ontario to haul the heaviest loads. Hot dipped galvanized steel ensures durability and longevity with corrosion resistance and extreme duty construction.
Financing Available OAC.
----SPECS----
SEE SPEC CHART BELOW DESCRIPTION
----FEATURES----
- 16" Engineered I-Beam Frame, 1/4" x 4" Top & Bottom Flange (25' & 30' models)
- 18" Engineered I-Beam Frame, 3/8" x 4" Top & Bottom Flange (35' & 40' models)
- 7-Gauge Webbing
- 3" Crossmembers at 16" OC
- Cambered Deck (35' & 40' models)
- Torque Tube (30', 35', 40' models)
- Integrated Winch Plate (2 locations)
- Folding Side Steps (both sides)

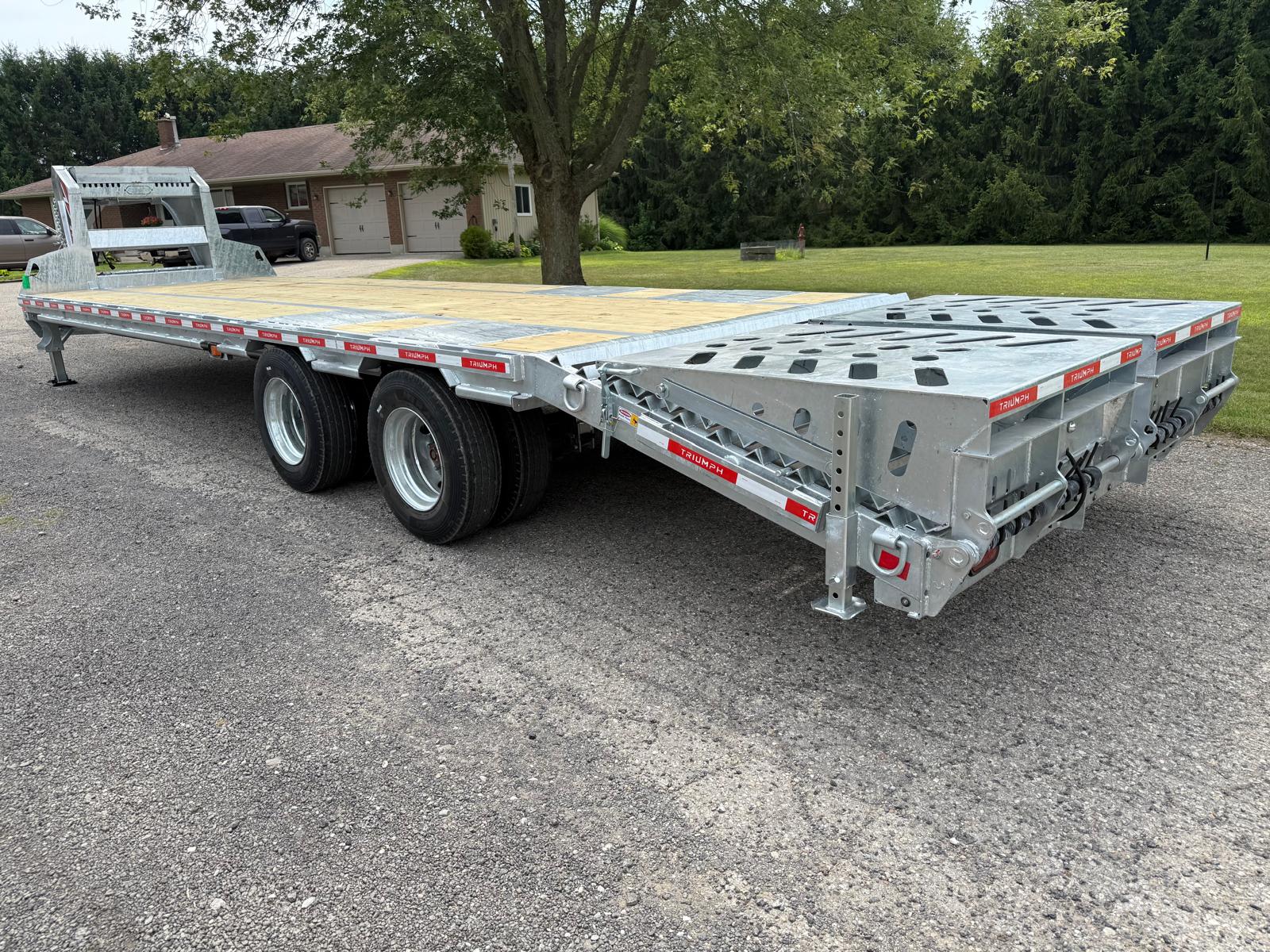

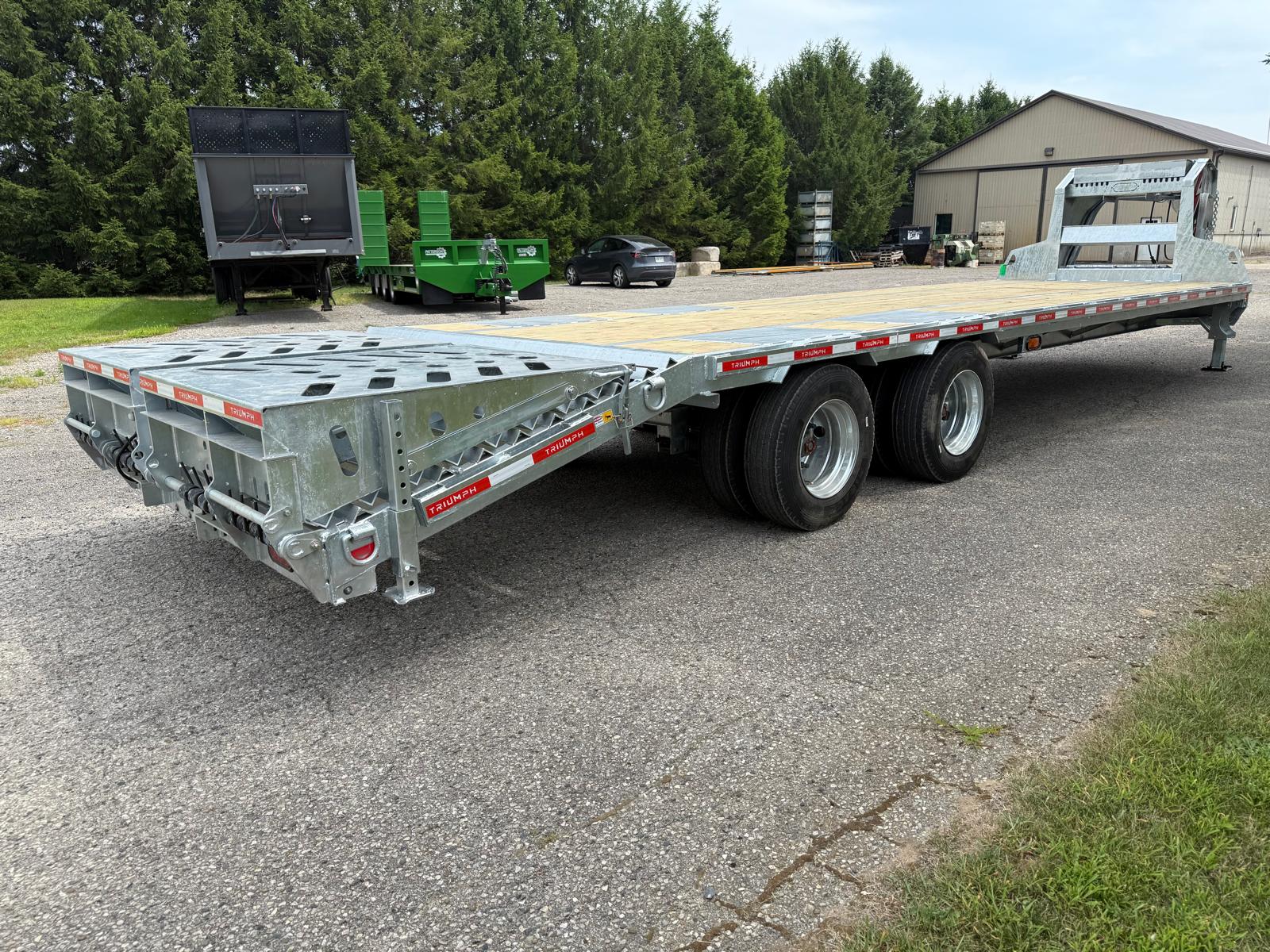

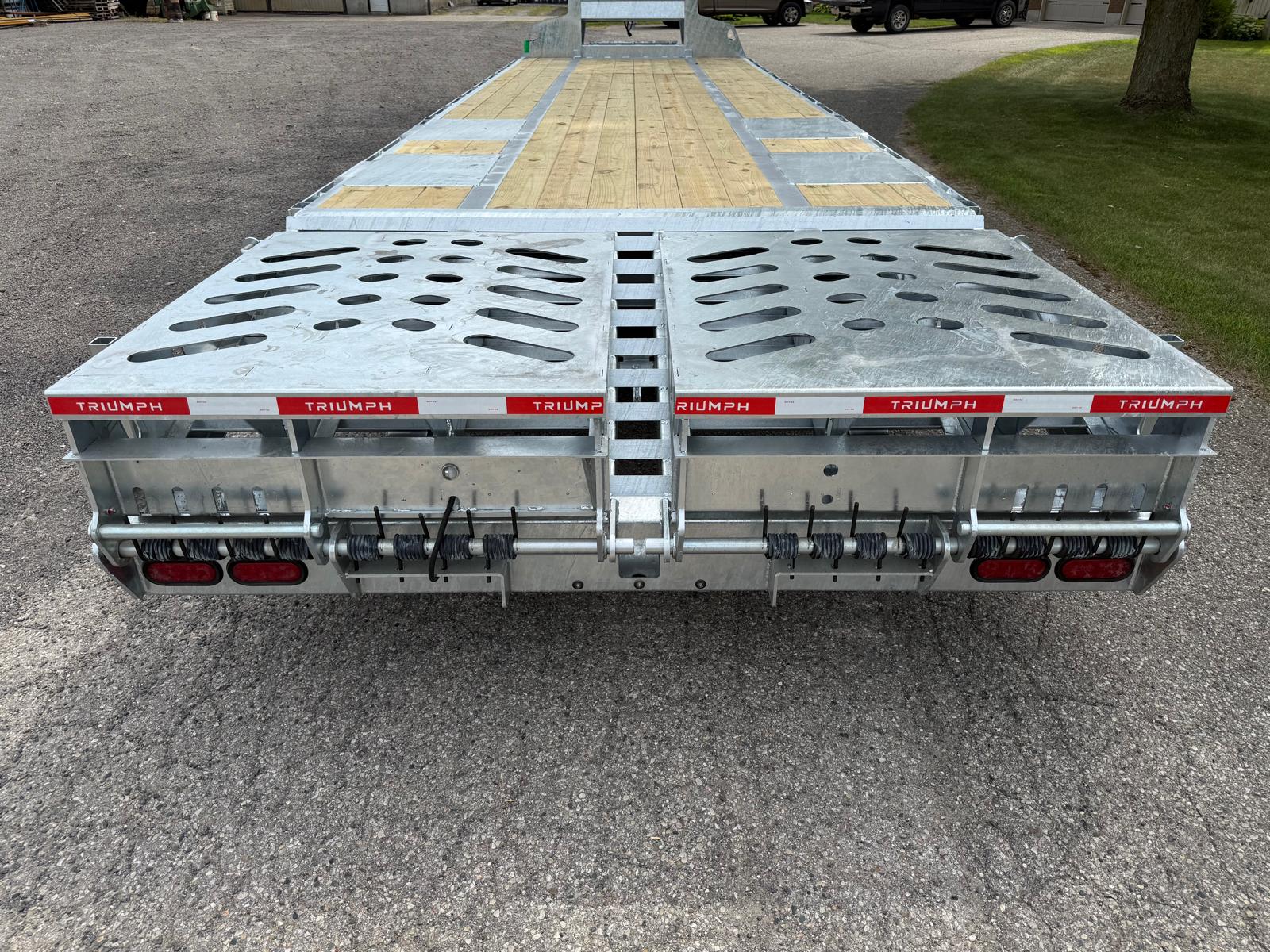

- HD Spring Assisted Mega Ramps
- Lockable Chain/Winch Cabinet in Gooseneck
- Spare Tire Mount
- Drop Legs
- Integrated Toolbox (between goosenecks)
- 2" Rub Rail with Stake Pockets every 12"
- Draw Latch Used to Hold Ramps

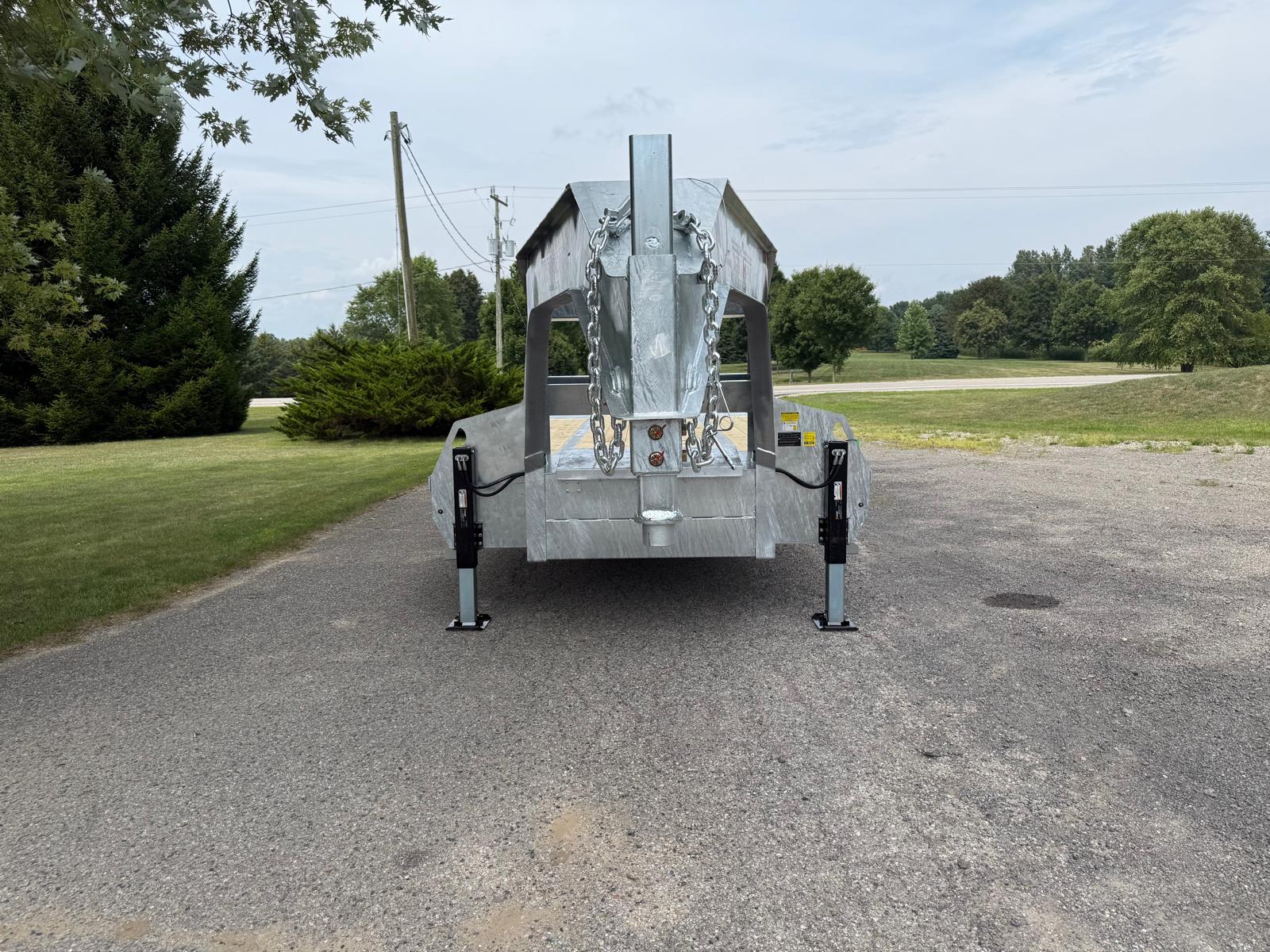

- 2-5/16" Adjustable Coupler
- 5' Beavertail with 14-Degree Load Angle
- Treated Yellow Pine Decking

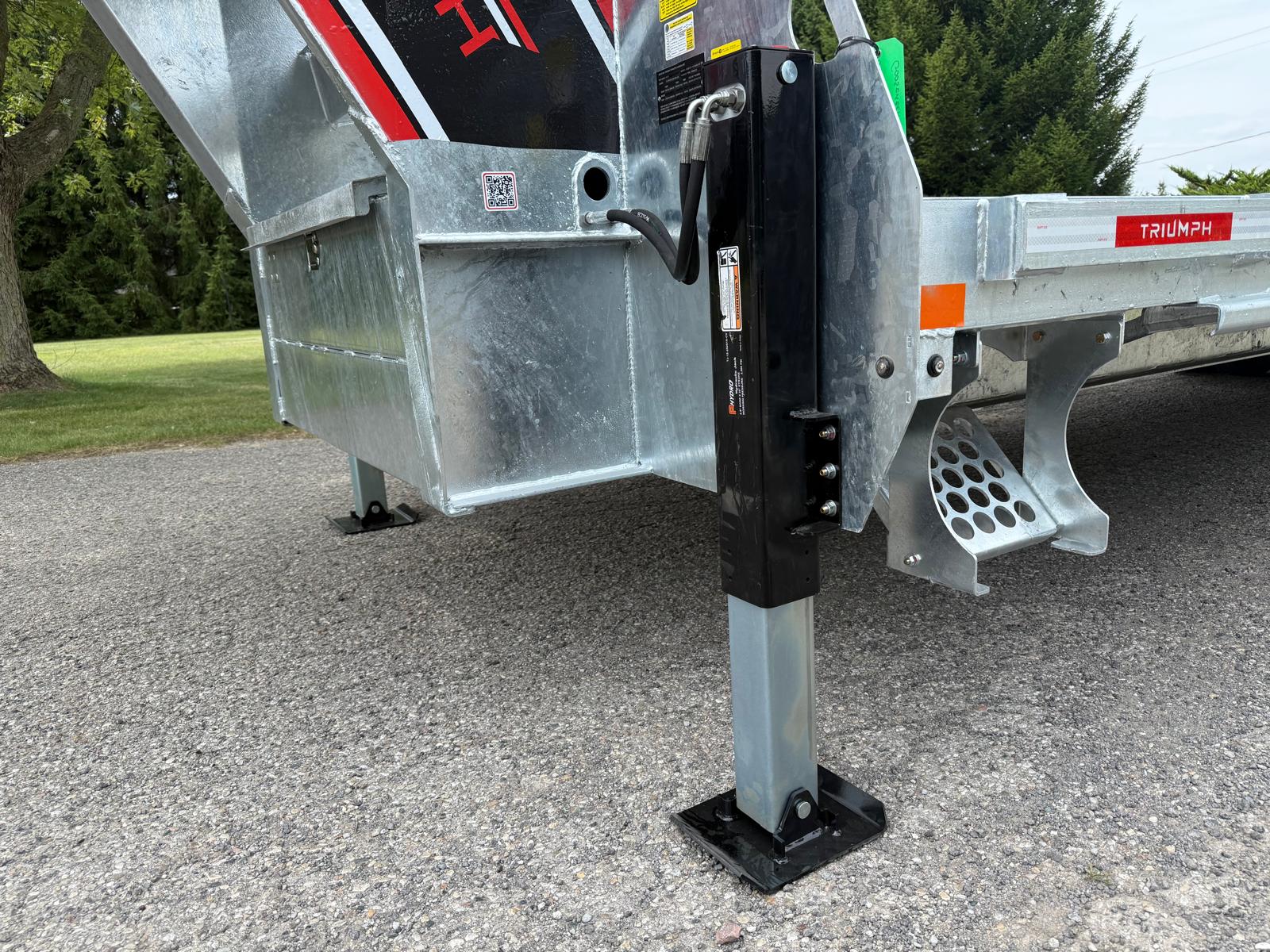

- Two 12k Spring Loaded Jacks

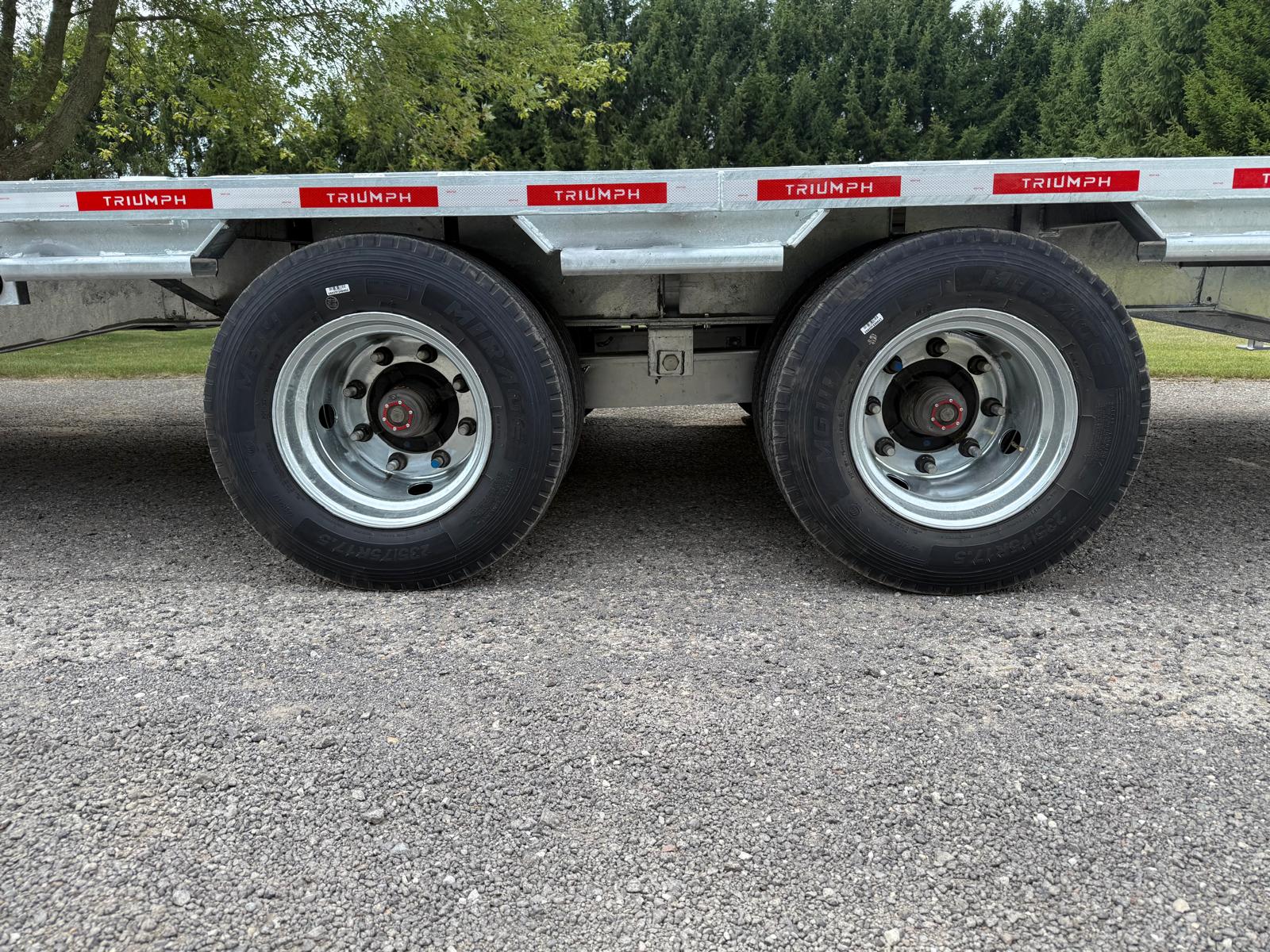

- 235/80R16 galvanized wheels
- 12k Axles: Oil Bath
- Slipper Suspension
- All LED Lighting
- Sealed Wiring Harness
- 2 HD D-Rings
-----OPTIONS-----
- 16k Axle Upgrade
- Winch Tracking
- Hydraulic Brake Upgrade
- 5th Wheel Attachment
- 2-Speed Jacks
- Hydraulic Jacks
- Hydraulic Ramps
- Hutch Suspension
- Undermounted Toolbox
- Decking on Gooseneck
Specifications
| MODEL: TA102x20+5-12k GWVR: 28,800 lbs PAYLOAD: 21,020 lbs TRAILER SIZE: 8.5′ x 20’+5′ WEIGHT: 7,780 lbs AXLES: 2 x 12,000 lbs dually TIRES: 235/80R16″ radials JACK: 12k quick adjust spring loaded PLUG: 7-way round plug COUPLER: Mono-block gooseneck |
MODEL: TA102x25+5-12k GWVR: 28,800 lbs PAYLOAD: 20,300 lbs TRAILER SIZE: 8.5′ x 25’+5′ WEIGHT: 8,500 lbs AXLES: 2 x 12,000 lbs dually TIRES: 235/80R16″ radials JACK: 12k quick adjust spring loaded PLUG: 7-way round plug COUPLER: Mono-block gooseneck |
| MODEL: TA102x30+5-12k GWVR: 28,800 lbs PAYLOAD: 19,605 lbs TRAILER SIZE: 8.5′ x 30’+5′ WEIGHT: 9,195 lbs AXLES: 2 x 12,000 lbs dually TIRES: 235/80R16″ radials JACK: 12k quick adjust spring loaded PLUG: 7-way round plug COUPLER: Mono-block gooseneck |
MODEL: TA102x35+5-12k GWVR: 28,800 lbs PAYLOAD: 24,845 lbs TRAILER SIZE: 8.5′ x 35’+5′ WEIGHT: 11,155 lbs AXLES: 2 x 12,000 lbs dually TIRES: 235/80R16″ radials JACK: 12k quick adjust spring loaded PLUG: 7-way round plug COUPLER: Mono-block gooseneck |
